Carbon Steel Basket Strainer

Carbon Steel Basket Strainer Introduction

LYV® is Carbon Steel Basket Strainer manufacturers and suppliers in China. It is a small equipment to remove a small amount of solid particles in the liquid. It is mainly composed of a nozzle, a main pipe, a filter blue, a flange, a flange cover and fasteners. When the fluid enters the filter cylinder with a certain size filter screen, the impurities are blocked, and the clean fluid is discharged through the filter blue and the filter outlet. When it is necessary to clean, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and reload it after cleaning. Therefore, it is very convenient to use and maintain. The larger particles are filtered through a coarse strainer and then reach a fine strainer. In the filtration process, the fine filter gradually accumulates the dirt and impurities in the water, which can be restored as new. Therefore, it has been widely used in petroleum, chemical, pharmaceutical, food and other industries, and is favored by users.

LYV Carbon steel Blue filter Parameter (Specification)

Shell material cast iron, carbon steel stainless steel

Filter frame screen material stainless steel

Seal material oil - resistant asbestos, flexible graphite, PTFE

Operating temperature (℃) -30 ~ + 380-80 ~ +450

Nominal pressure (MPa) 0.6 ~ 6.4 (150Lb ~ 300Lb)

Filtration accuracy (mesh /in) 10-300

Connection flange, butt welding

LYV Carbon steel Blue filterFeature And Application

1, high filtering degree, can be configured according to customer requirements of the filter fineness.

2, the working principle is simple, the structure is not complicated, easy to install, disassemble and maintain.

3. Less wearing parts, no consumables, low cost of operation and maintenance, simple operation and management.

4, stable production process, protect instruments and mechanical equipment, maintain the safety and stability of production.

5, the core part of the filter is the filter core, the filter element is composed of the filter frame and stainless steel wire mesh.

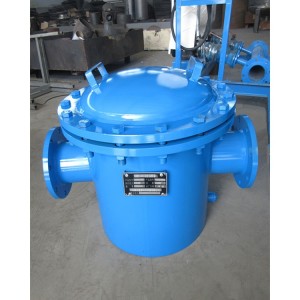

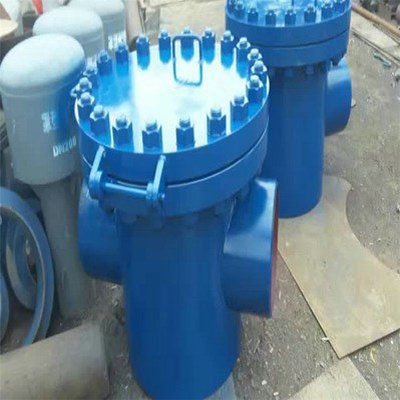

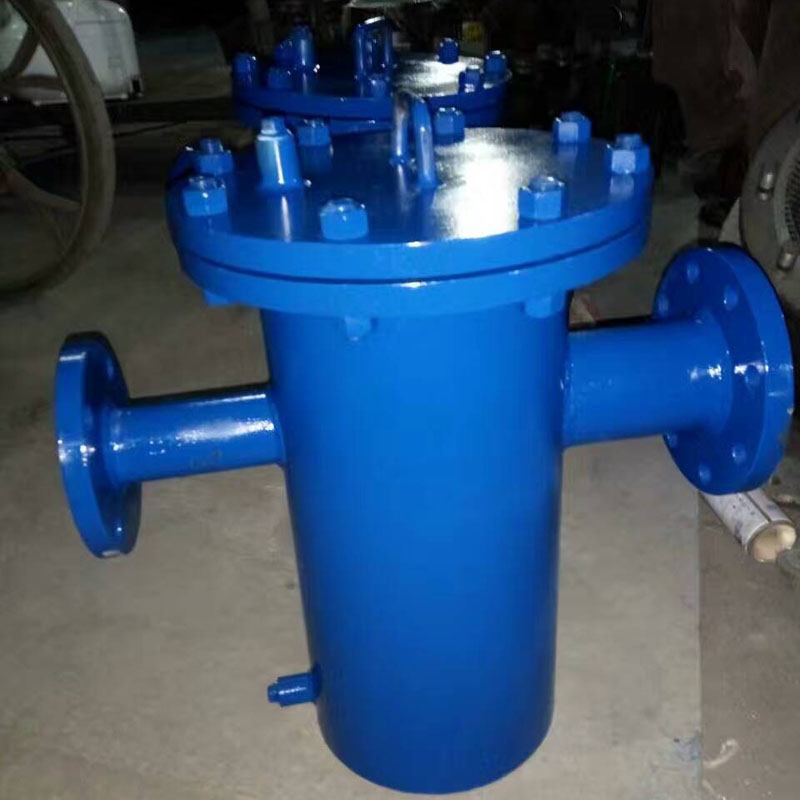

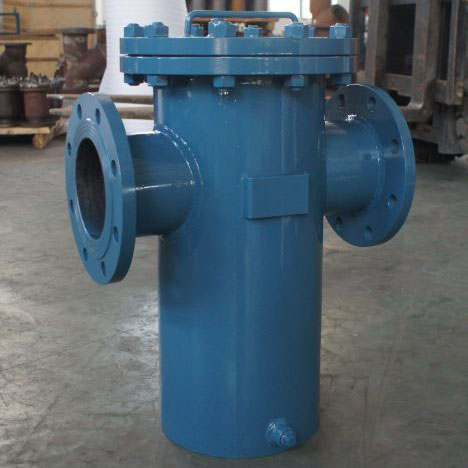

LYV Carbon steel Blue filter Details
