Flanged Floating Ball Valve

LYV flange floating ball valve Introduction

LYV® is one of the professional Flanged Floating Ball Valve manufacturers and suppliers in China.  This Flanged Floating Ball Valve uses hydraulic principle design, has a compact structure, open, close action reliable, high sensitivity, small head loss, no water hammer phenomenon, but also has the characteristics of light weight, small size, convenient installation and maintenance, widely used in water industry, civil buildings all kinds of water tanks, pools, water tower automatic water supply system, can also be used as atmospheric pressure boiler circulation water supply control valve.

Flanged Floating Ball Valve Parameter (Specification)

Stainless steel flange float ball valve is composed of valve body, piston, connecting rod and float ball and other main components, the application of lever principle. When the water level of the water tank is low, the float decreases with the water level, and the piston in the valve body is pulled outward by the connecting rod of the fixed float ball, so that the valve body and the piston are empty, so that tap water can enter the water tank; When the water level of the tank to the set height, the force generated by the water level rise of the float ball through the connecting rod to push the piston in the valve body to the valve body, because the top of the piston is installed with a sealing rubber washer, the outlet in the valve body and processed relatively smooth, smooth, when the buoyancy of the float ball exceeds the tap water pressure, The piston installed with a sealing rubber washer is tightly sealed with the outlet in the valve body, and the tap water is closed by the float ball valve

Flanged Floating Ball Valve Feature And Application

Flange float ball valve product features:

1: The opening pressure is zero

2: Small float ball control the main valve opening and closing, closing reliability is good.

3: Good circulation capacity.

4: reliable working pressure.

Flange float ball valve Model: G41F Nominal diameter: DN25 to DN300

Nominal pressure: 0.6MPa-1.0MPa Allowable inlet pressure: 0MPa

Applicable medium: drinking water, clean water body material: 304 stainless steel

Internal material: stainless steel 304

Applicable temperature: cold water type ≤65℃ hot water type ≤100℃

All stainless steel construction

The float ball valve body adopts stainless steel die casting technology, so that the components are well coordinated, there is no corrosion loose or tight jam phenomenon, to ensure the long-term stable work of the ball valve, while the stainless steel component design makes the ball valve in high humidity environment without chemical corrosion reaction, so that the water is pure and healthy.

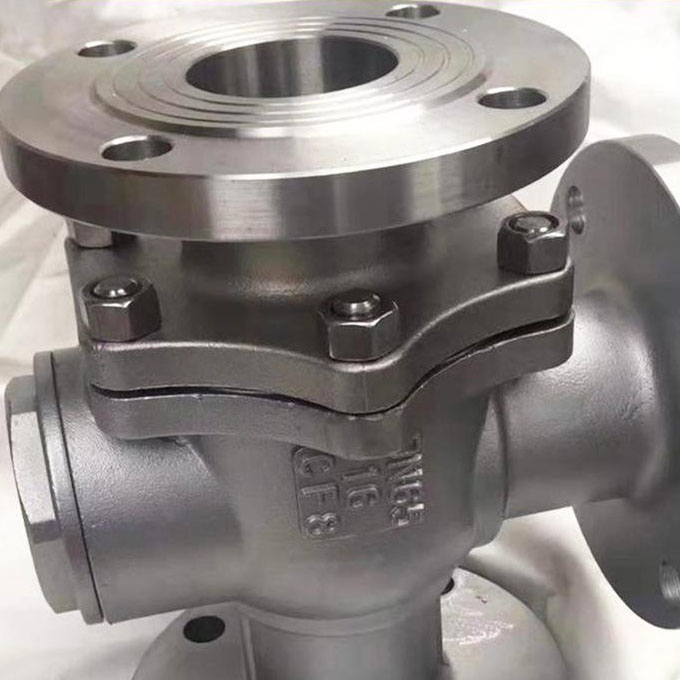

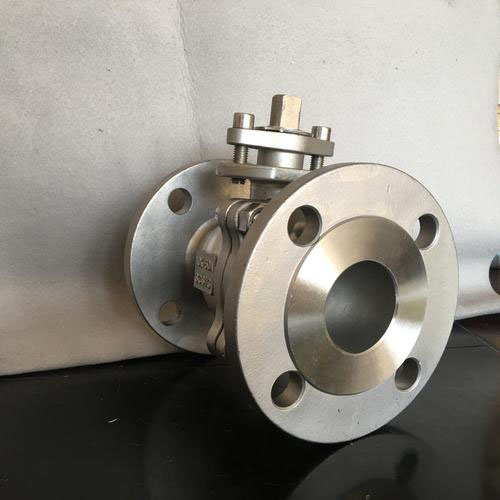

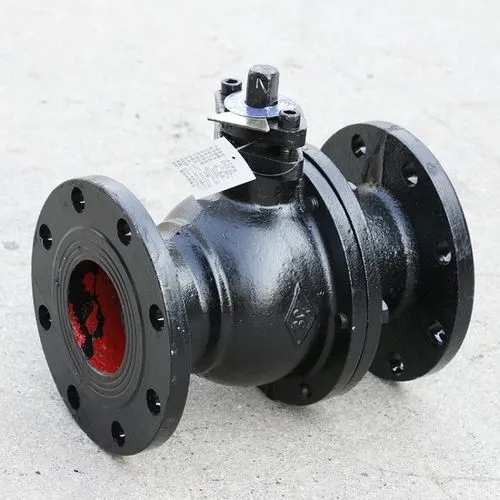

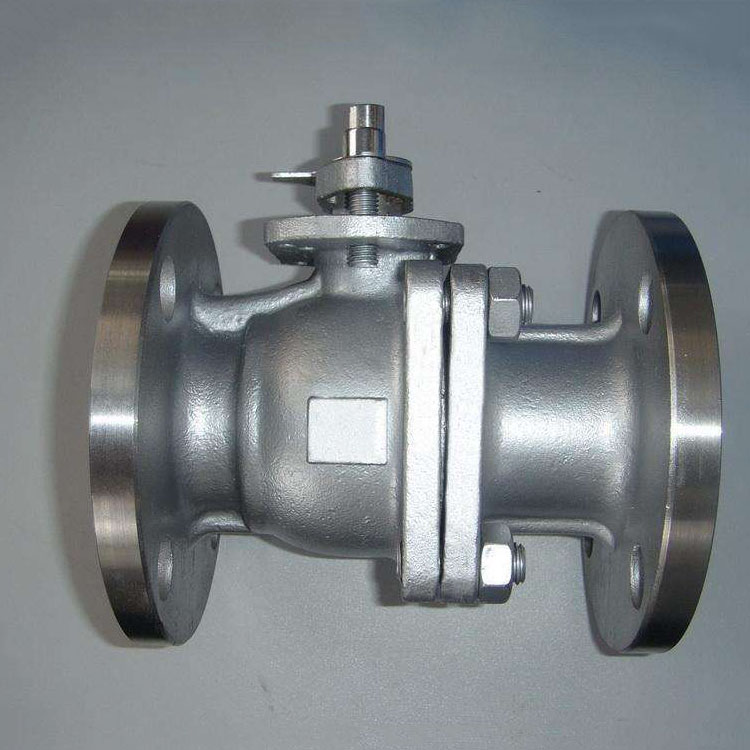

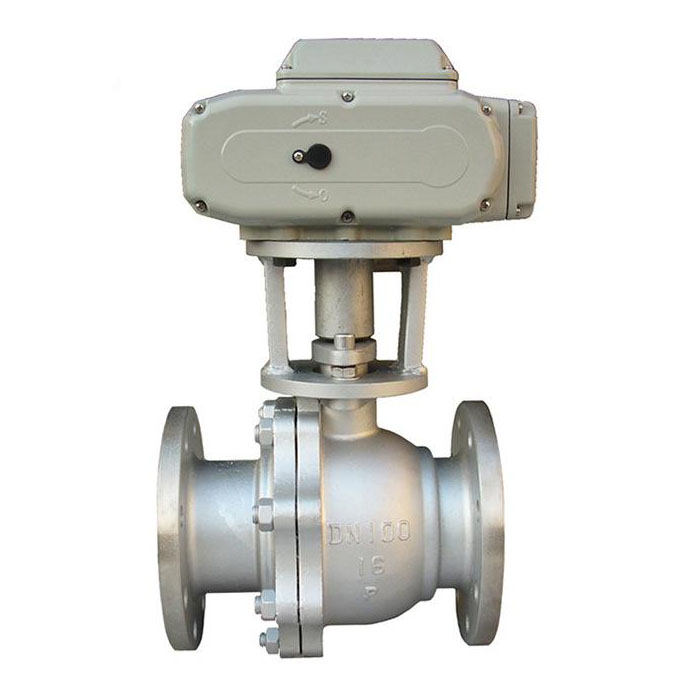

LYV flange floating ball valve Details
