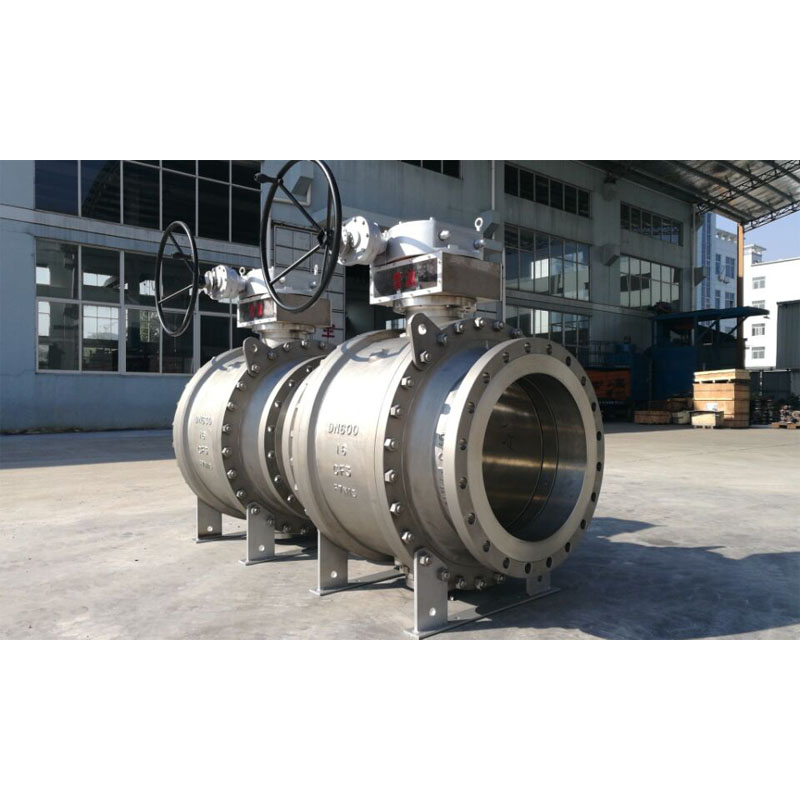

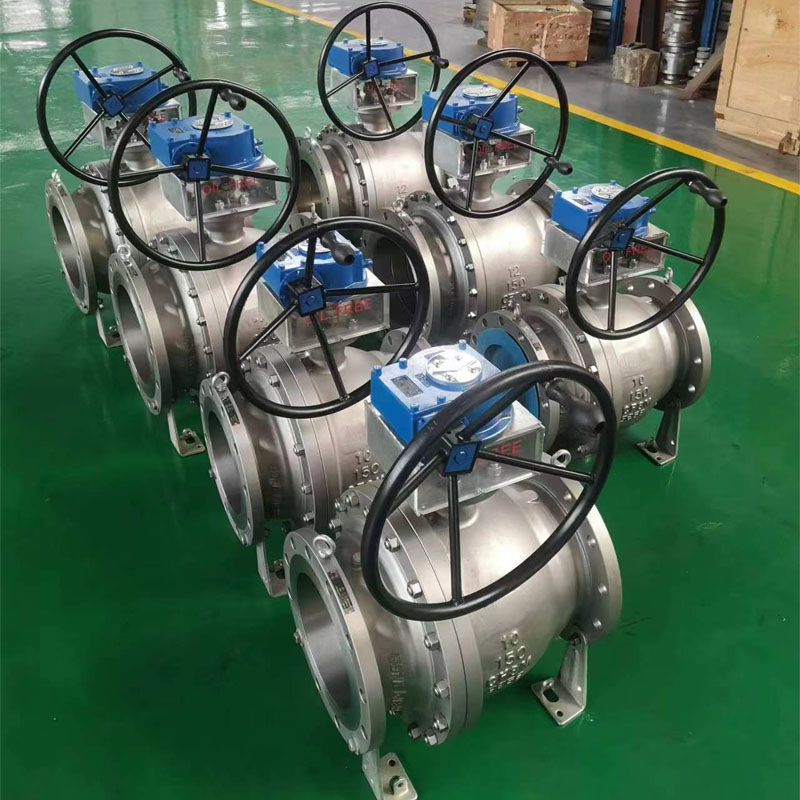

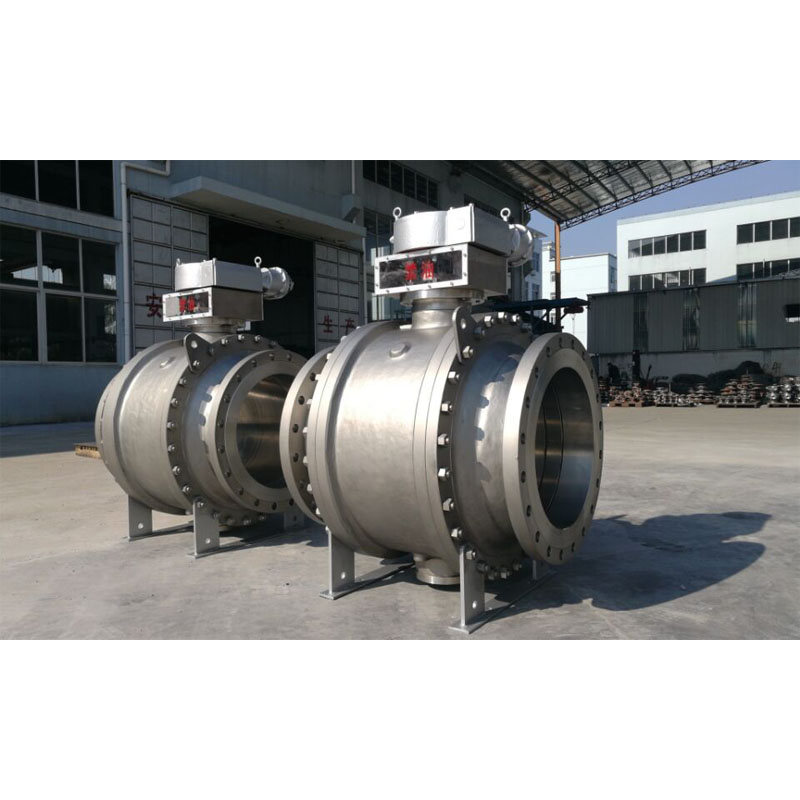

Oxygon Ball Valve

Oxygon Ball Valve is a kind of special ball valve that the valves are used for the Oxygon gas in the system, which should be strictly Oil Free requirement during the assembly and installation process.

Design & Testing International Standard of Two piece ball valve

Design Standard : BS EN ISO 17292 (BS 5351) / ASME B 16.34 /API 6D

Inspection & Testing Standard : API 598/ API 6D

Fire Safe Testing Standard : API 607/API 6FA

Flange To Flange Length : ANSI B 16.10 -Short pattern/ Long pattern

End Connection : Flanged End to ANSI B 16.5, Butt Weld ends, Stock Weld ends.

Manufacturer Size and Pressure Range:

NPS 1/2” to 48” (for ANSI Class 150LB)

NPS 1/2” to 48” (for ANSI Class 300LB)

NPS 1/2” to 48” (for ANSI Class 600LB)

NPS 1/2” to 36” (for ANSI Class 900LB)

NPS 1/2” to 24” (for ANSI Class 1500LB)

NPS 1/2” to 12” (for ANSI Class 2500LB)

or

DN15 to DN1200 (for PN0.6Mpa, 1.6Mpa, PN2.0Mpa, PN2.5Mpa)

DN15 to DN1200 (for PN4.0Mpa, PN5.0Mpa)

DN15 to DN1200 (for PN6.3Mpa, PN10.0Mpa)

DN15 to DN900 (for PN15.0Mpa)

DN15 to DN600 (for PN25.0Mpa)

Pipe Bore: Full Bore (FB)/ Reduce Bore(RB)

Construction Body: Side Entry

Bonnet/Cover type: Bolted Bonnet/Extended Bonnet

Seat Type: Soft type

Flow Directional: Uni-Directional/Bi-Directional

Service Medium: Oxygon gas

Feature: Fire Safety design

Anti-Static Design

Blow-out Proof Stem

Valve Operation: Manual Lever / Worm-Gear /Actuator Operated/ Pneumatic Actuator / Electrical Actuator

MOC (Bill of Material – BOM) :

Body &Bonnet: ASTM B148 C95800 (Al–Bronze)

: ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) (Stainless Steel)

Solid Ball : ASTM B148 C95800 (Al–Bronze)

: ASTM A 182 F304 / F316 (SS 304 / SS 316)

Stem : ASTM B148 C95800 (Al–Bronze)

: ASTM A 182 F304 / F316 (SS 304 / SS 316)

Ball Seat & Body Seal : PTFE Virgin / 25% Glass Fillted PTFE

: PEEK / Delrin / Grafoil – Graphite Ring

Gland Packing : PTFE Virgin / 25% Glass Filled PTFE – GFT / Carbon Filled PTFE – CFT
