Pressure Self-balancing Plug Valve

Pressure Self-balancing Plug Valve Introduction

You can rest assured to buy Pressure Self-balancing Plug Valve from LYV® factory and we will offer you the best after-sale service and timely delivery. It can judge the valve position quickly and accurately, judge the measuring accuracy of the pressure gauge online, verify the pressure gauge online, and automatically close the valve when the pressure gauge is removed online, buffer and cool the pressure signal of the pressure gauge. Widely used in petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas, hVAC industry and general industry.

The pressure gauge installed on the boiler, the use of pressure gauge three-way cock valve to make the cylinder, steam and space connected to the water pipe for flushing, proofreading, cut-off pressure gauge and other work

Pressure Self-balancing Plug Valve Parameter (Specification)

Operating pressure 1.6-10.0 MPa Operating temperature ≤200℃

If leakage occurs during operation, you can tighten the valve bottom plug until it does not leak. If the sealing ring is worn out for a long time, it can be replaced with a new bushing.

Pressure Self-balancing Plug Valve Feature And Application

Pressure gauge plug valve overcomes the many shortcomings of pressure gauge three-way plug valve, pressure gauge plug valve, valve body material selected for steel forging, stem selected for stainless steel column stem, seal bushing graphite material, can be used in the process of flexible change switch direction, will not occur heat expansion bite, and reliable sealing performance, accessories replacement, convenient maintenance.

Connection: 1. The gauge head is M20×1.5 according to the standard pressure gauge

2. The steam inlet is M20×1.5 and ZG1/2 "with internal thread

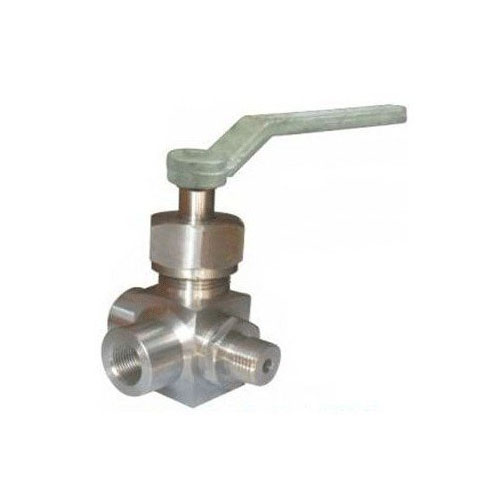

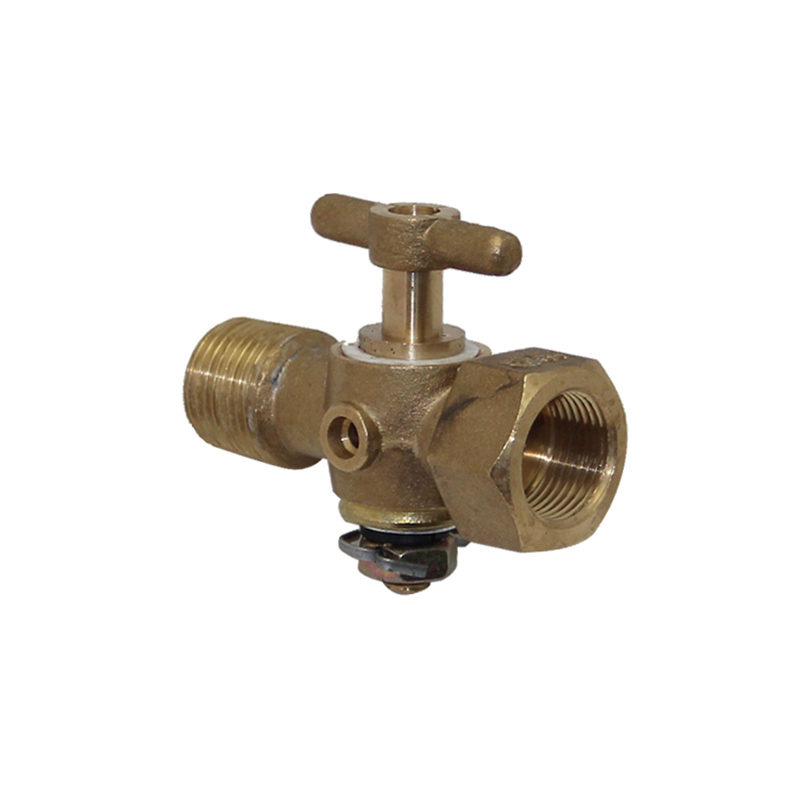

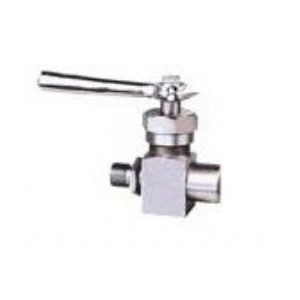

LYV pressure self balancing plug valve Details
