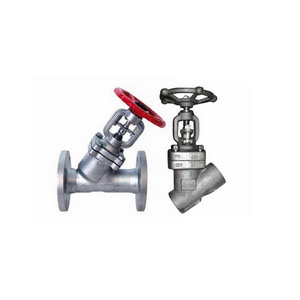

Y Pattern Globe Valve

LYV® Y-type globe valve Introduction

You can rest assured to buy customized Y Pattern Globe Valve from LYV®. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time! Y-type stop valve forging steel (socket welding, self-sealing) Y-type stop valve is suitable for nominal pressure 150LB-2500LB, working temperature -29 ~ 550℃ petroleum, chemical industry, pharmaceutical, chemical fertilizer, power industry and other conditions of the pipeline above, cut off or connect the medium. Applicable medium: water, oil, steam, acid medium, etc. Operation mode: manual, pneumatic, electric

LYV® Y Pattern Globe Valve Parameter (Specification)

Valve body WCB WC1 WC6 WC9

Valve Cover 25 15CrMoA 12Cr1MoVA 12Cr1MoVA

Support WCB WCB WCB WCB

WC1 WC6 WC9

Disc 25 15CrMoA 12Cr1MoVA 12Cr1MoVA

Valve Stem 25Cr2MoV 25Cr2MoV 20Cr1Mo1V1A 20Cr1Mo1V1A

Seat 25 15Cr1MoA 12Cr1MoVA 12Cr1MoVA

Seal ring reinforced flexible graphite

Filler reinforced flexible graphite

Valve stem Nut ZCuA110Fe3

LYV® Technical requirements for Y Pattern Globe Valve

1. Valve design and manufacture according to API 623-2013, JIS E101 and NB/T 47044-2014;

2, valve test according to API 598-2009, etc.;

3. The structural length shall be in accordance with ASME B16.10-2009, JIS E101 and NB/T 47044-2014, etc., or in accordance with the enterprise standard length or user provided size;

4, welding groove according to ASEM B16.25-2012, GB/T 12224-2005, JB/T 3595-2002, NB/T 47044-2014 and power industry management standard 78DG regulations or users to provide the size;

5, pressure and temperature rating according to ASME B16.34-2013 and other regulations

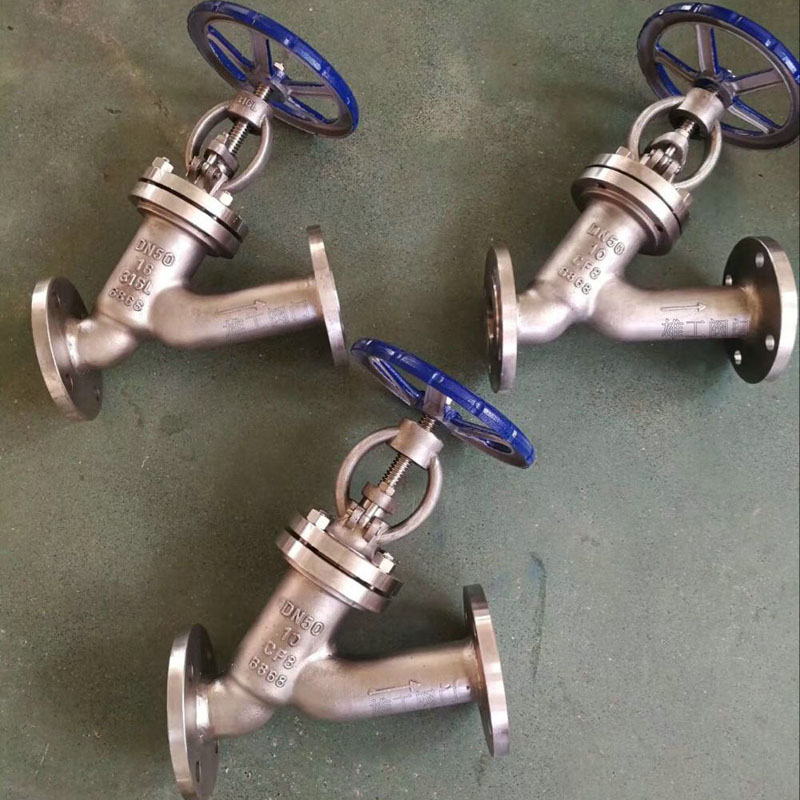

LYV Y-type globe valve Details
