API 6D Check Valve

LYV API 6D Check Valve Introduction

LYV API 6D Check Valve 2. Standard

Design-DIN

Face to Face & End to End -DIN

Flange drilling -DIN

3. Size and pressure range:

PN : 16

DN: 50 ~ 300 mm

Step 4: Materials

Body and hood: cast steel

Disc: cast steel

Sealing ring: stainless steel + graphite, polytetrafluoroethylene, RPTFE, EPDM, nitrile rubber

Stem: 1045,2 CR13, 304,316,304 L, 316L, 17-4PH

5. Operating temperature

-196 °C -- -- 650 °C;

Step 6 Apply

Chemical, petrochemical, oil and gas, power plant, general industry, etc. ;

LYV API 6D Check Valve Standards and specifications

1, design and manufacturing: api594, api6d, jb/t8937

2, structure length: api594, api6d, din3202, jb/t8937

3, pressure temperature grade: snsib16.34, din2401, gb/t9124, hg20604, hg20625, sh3406, jb/t74

4, test and inspection: api598, jb/t9092

5, piping flange: jb/t74~90, gb/t9112! 9124, hg20592~20635, sh3406, ANSI 16.5, din2543~2548, gb/t13402, api605, asmeb16.47

LYV API 6D Check Valve Feature And Application

1, the structure length is short, its structure length is only 1/4~1/8 of the traditional flange check valve

2, small size, light weight, its weight is only 1/4~1/20 of the traditional flange check valve

3. The valve flap closes quickly and the pressure of the water hammer is small

4, horizontal or vertical pipe can be used, easy to install

5, the flow channel is unobstructed, the fluid resistance is small

6, sensitive action, good sealing performance

7. Short stroke of valve disc and small impact force of closing valve

8, the overall structure, simple and compact, beautiful shape

9, long service life, high reliability

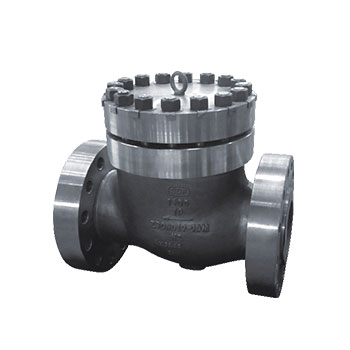

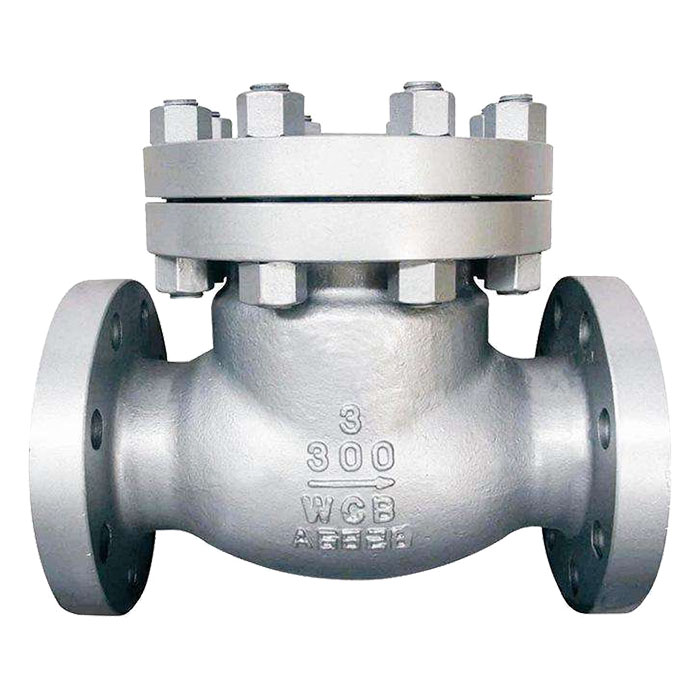

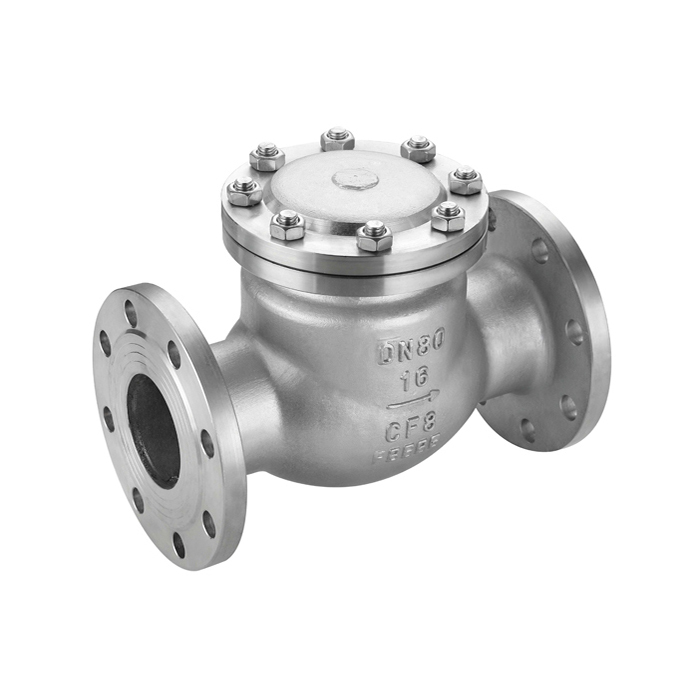

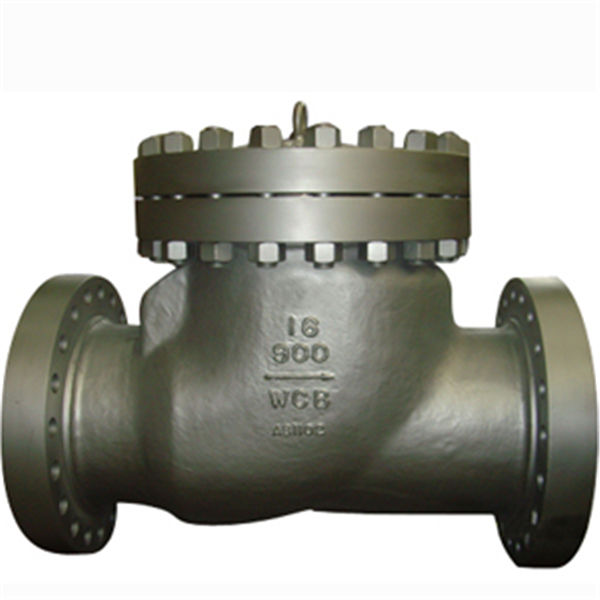

LYV API 6D Check Valve Details
