Tilting Disc Swing Check Valve

With years of experience in production Tilting Disc Swing Check Valve, LYV can supply a wide range of  Tilting Disc Swing Check Valve. High quality Tilting Disc Swing Check Valve can meet many applications, if you need, please get our online timely service about swash plate swing check valve. In addition to the product list below, you can also customize your own unique swash plate swing check valve according to your specific needs.

LYV® Tilting Disc Swing Check Valve Introduction

LYV® swash plate swing check valve The product is designed and manufactured in strict accordance with GB12236 standard, the pin and disc are connected by internal structure, reliable performance, reliable sealing. Products are widely used in petroleum, chemical, pharmaceutical, electric power industry and other working conditions of the pipeline

LYV® Tilting Disc Swing Check Valve Parameter (Specification)

Design and manufacturing standards: GB/T 12235, AP600, API6D, ANSI/ASME B16.34

Connecting flange standard: GB/T 9113,API6D,ANSI/ASME B16.5

Pressure and temperature, such as: GB/T 12224-2005, and GB/T9131, ANSI/ASME B16.34

Experimental testing standard: GB/T 13927-2008, JB/T9092, API598, API6D

Design and manufacture: according to ANSI B16.34

Structure length: ANSI B16.10

Flange size: ANSI B16.15

Test ~ Test :API 598

LYV® swash plate swing check valve Feature And Application

1, material selection, in line with standards, the overall quality of materials.

2, the sealing pair is reasonable, the sealing surface of the valve disc and seat is made of iron base alloy or cobalt base carbide surfacing surface, good wear resistance, high temperature resistance, corrosion resistance, abrasion resistance, long service life.

3. Products are designed and manufactured according to the national standard GB/T12235.

4. Various pipe flange standards and flange sealing types can be adopted to meet various engineering needs and user requirements.

5, the valve body material variety is complete, gasket can be reasonably selected according to the actual conditions or user requirements, can be applied to a variety of pressure, temperature and medium conditions.

According to the user structure and connection form of the check valve, for all kinds of equipment matching use.

Swing check valve structure characteristics

1, the product structure is compact and reasonable, reliable sealing, reliable performance.

2. Small size and light weight.

3. Wide range of application.

4, the valve disc close fast, sensitive action.

5, the closing impact is small, not easy to produce water hammer phenomenon.

6, the flow channel is unobstructed, the fluid resistance is small

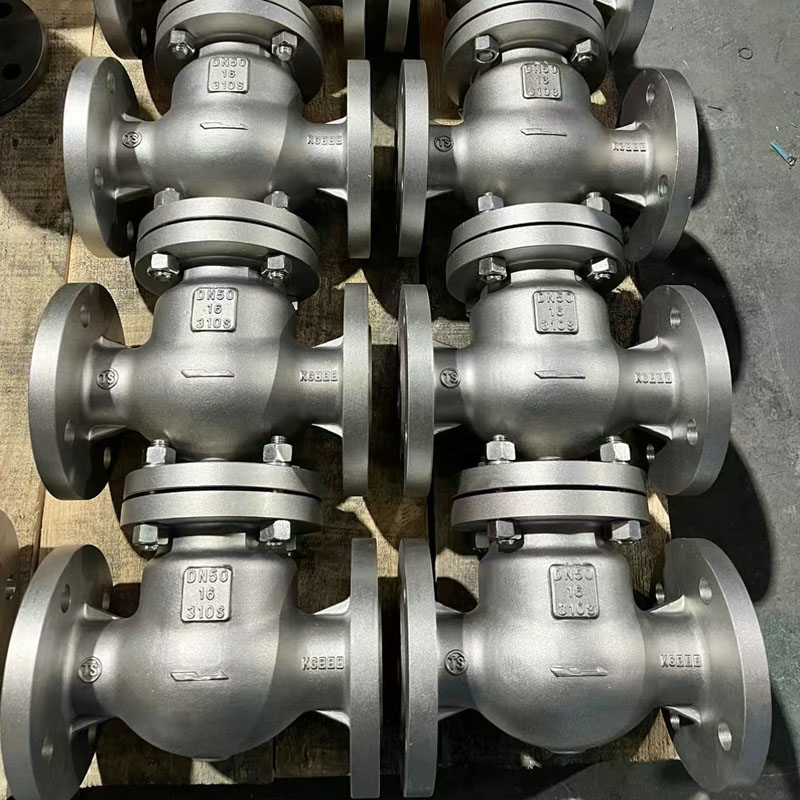

LYV® swash plate swing check valve Details
