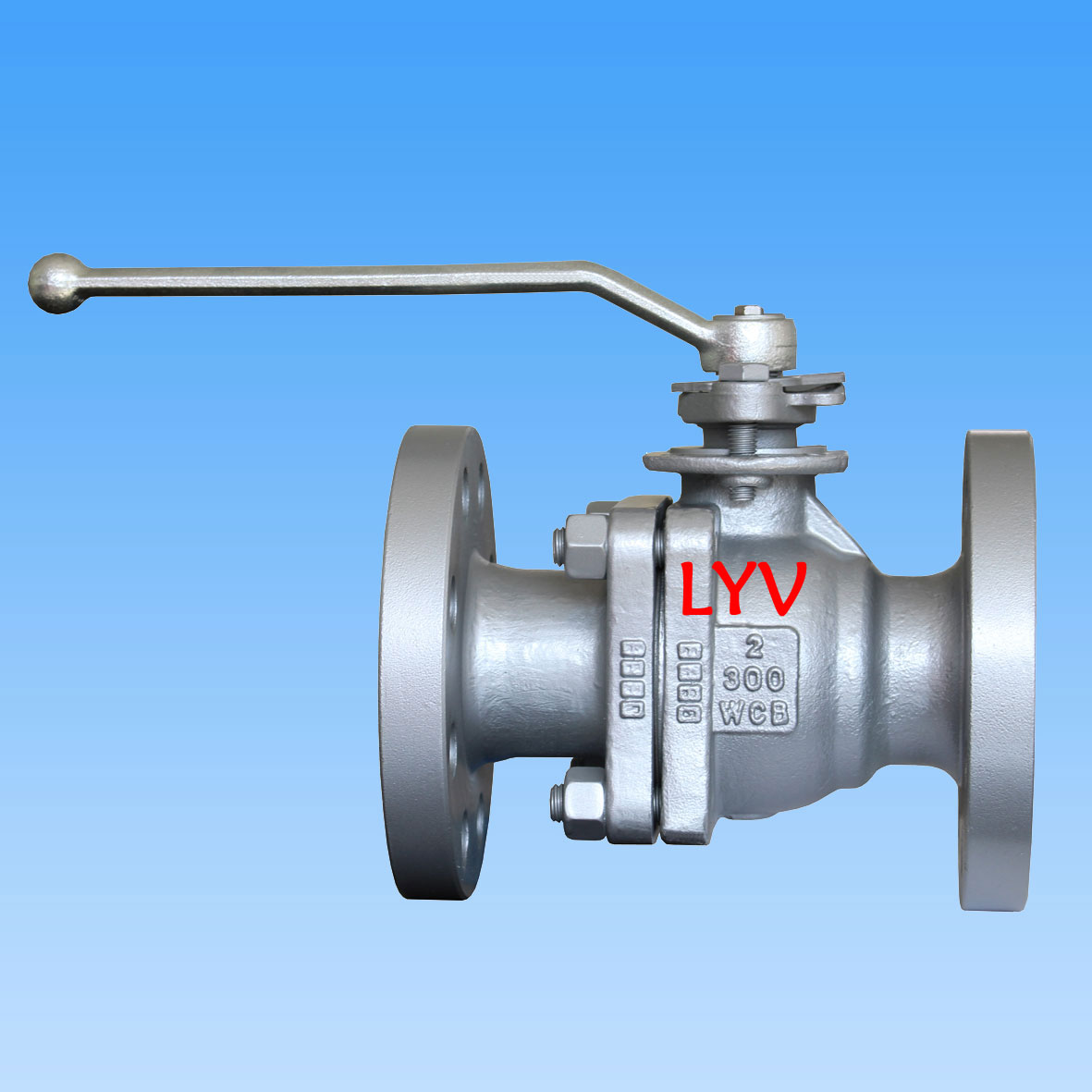

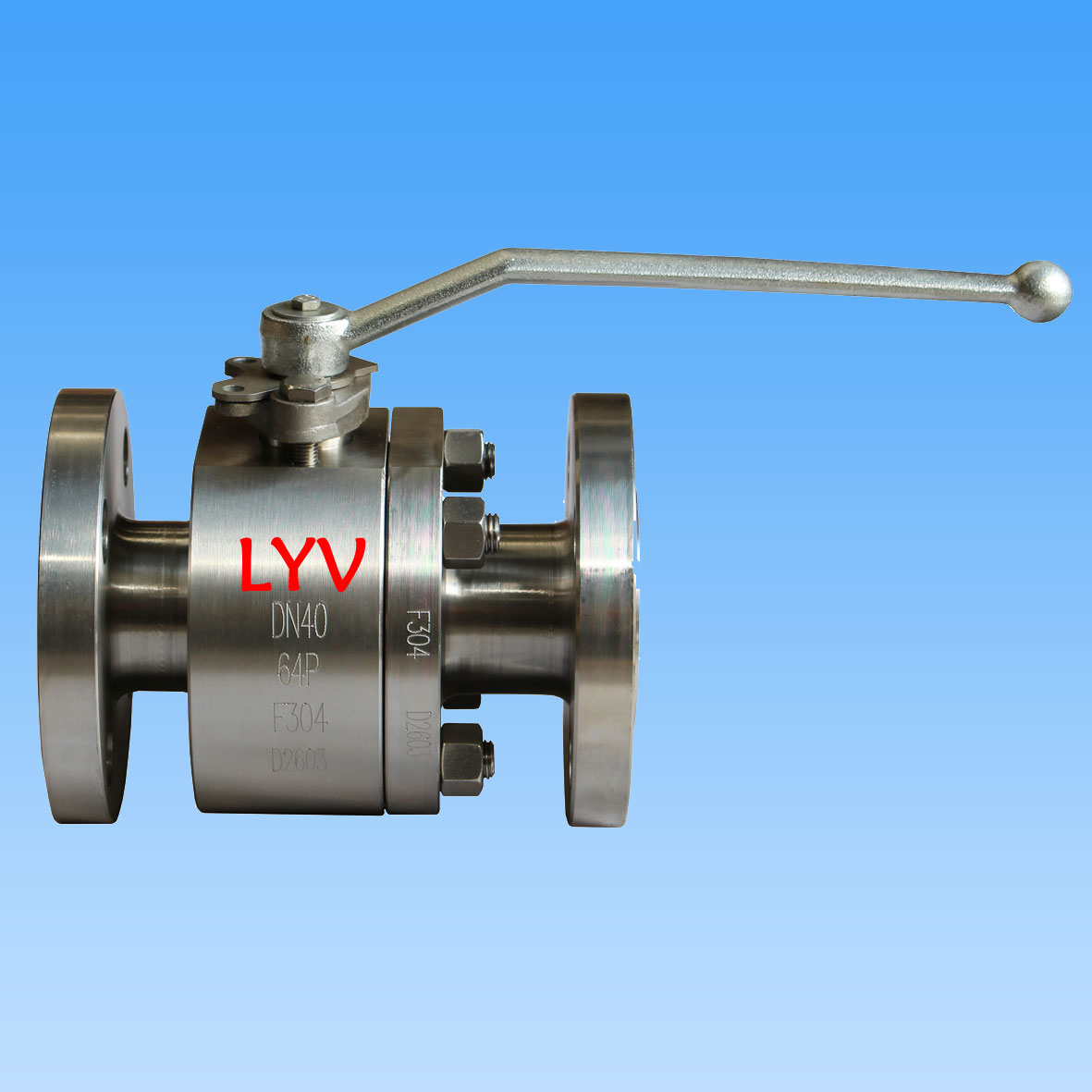

Soft Seated Floating Ball Valve

LYV is a professional industrial Soft Seated Floating Ball Valve manufacturer, exporting different valves to the American, Canadian, Southeast Asia, Russia, and Middle East etc. With the CNCs equipments and skilled workers, we can produce over than 50,000pcs valves per years, look forwarder to be a supplier that you can trust.

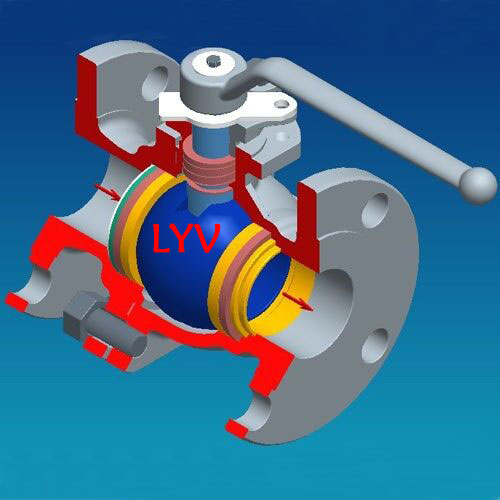

It is design per ISO 17292, API 608 & API 6D, as split body construction for soft seated floating ball.

Design & Testing International Standard of Two piece ball valve/ Three piece ball valve

Design Standard : BS EN ISO 17292 (BS 5351) / ASME B 16.34 /API 6D

Inspection & Testing Standard : API 598/ API 6D

Fire Safe Testing Standard : API 607/API 6FA

Flange To Flange Length : ANSI B 16.10 -Short pattern/ Long pattern

End Connection : Flanged End to ANSI B 16.5, Butt Weld ends, Stock Weld ends.

Manufacturer Size and Pressure Range:

NPS 1/2” to 10” (for ANSI Class 150LB)

NPS 1/2” to 8” (for ANSI Class 300LB)

NPS 1/2” to 4” (for ANSI Class 600LB)

or

DN15 to DN250 (for PN0.6Mpa, 1.6Mpa, PN2.0Mpa, PN2.5Mpa)

DN15 to DN200 (for PN4.0Mpa, PN5.0Mpa)

DN15 to DN100 (for PN6.3Mpa, PN10.0Mpa)

Pipe Bore: Full Bore (FB)/ Reduce Bore(RB)

Construction Body: End Entry

Bonnet/Cover type: Bolted Bonnet/Extended Bonnet

Seat Type: Soft type

Flow Directional: Uni-Directional/Bi-Directional

Service Medium: Natural Gas, Oil, Water, Oxygon gas, etc

Service: SOUR, ISO 15156/ NACE MR0175

Feature: Fire Safety design

Anti-Static Design

Blow-out Proof Stem

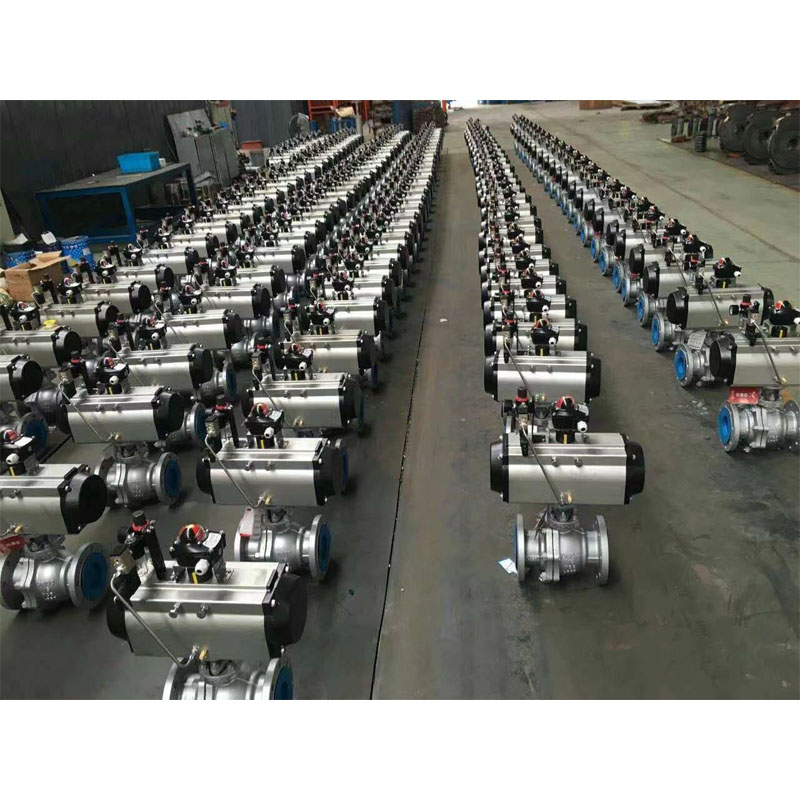

Valve Operation: Manual Lever / Worm-Gear /Actuator Operated/ Pneumatic Actuator / Electrical Actuator

MOC (Bill of Material – BOM) :

Body &Bonnet: ASTM A 216 GR. WCB /ASTM A105N (Carbon steel)

: ASTM A352 LCB / LCC /ASTM A350 LF2 (Low temp. carbon steel)

: ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) (Stainless Steel)

:ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) (Stainless Steel)

: ASTM A351 Gr. CF8C

: ASTM A890 4A / 5A/ 6A (Duplex Stainless Steel)

Solid Ball : ASTM A105N+ENP/ A105N+TCC

: ASTM A 182 F304 / F316 (SS 304 / SS 316)

: ASTM A 182 F304L / F316L (SS 304L / SS 316L)

: ASTM A 182 F347

: ASTM A182 F51/ F53 /F55

Stem : ASTM A182 F6a

:ASTM A182 F304 / F316 / F304L / F316L

:17/4 PH

: ASTM A182 F51/ F53/ F55

Ball Seat & Body Seal : PTFE Virgin / 25% Glass Fillted PTFE – GFT / Carbon Filled PTFE – CFT

: PEEK / Delrin / Grafoil – Graphite Ring

Gland Packing : PTFE Virgin / 25% Glass Filled PTFE – GFT / Carbon Filled PTFE – CFT

: Grafoil – Graphite Ring
